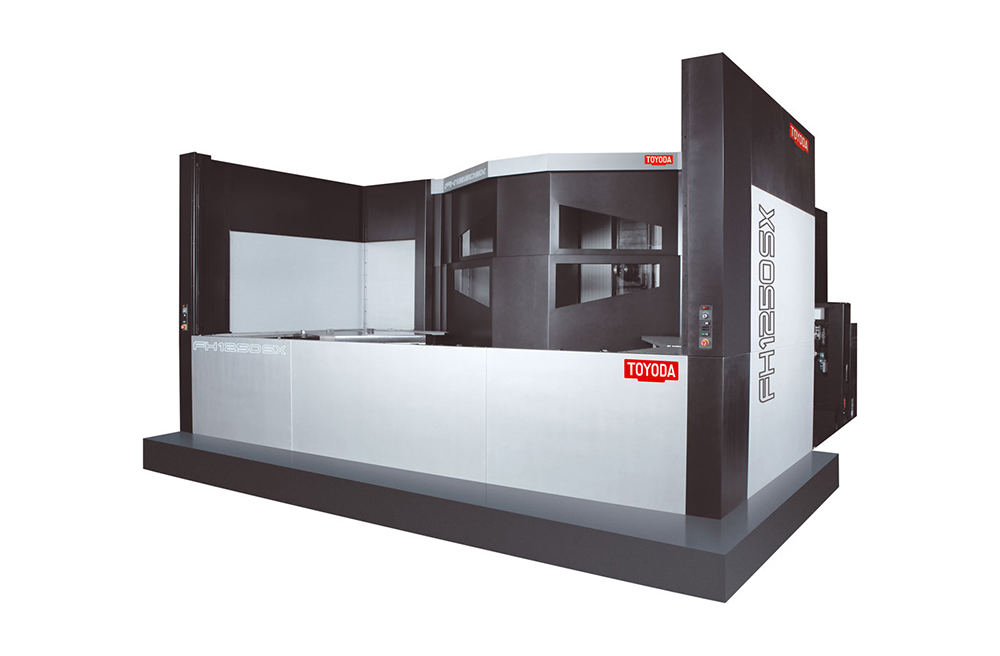

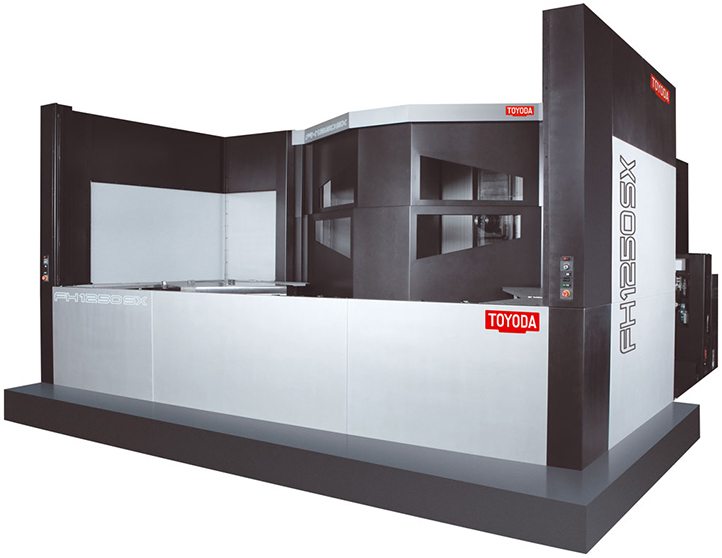

TOYODA FH1250SX Closed
Toyoda FH1250SX Closed is equipped with dual drives.
Horizontal machining centre Toyoda FH1250SX is the largest machine tool model of the FH-SX series featuring a pallet size of 1,250 mm².
It is equipped with dual drives in Y-axis and a high-torque spindle to machine high-strength materials at maximum accuracy.
The extra rigid machine bed of this horizontal machining centre is made from premium ductile graphite iron GGG60.
Attribute | Value |
|---|---|
Pallet size | 1.250 x 1.250 mm |
Traverse paths X/Y/Z | 2.200 x 1.600 x 1.850 mm |
Workpiece Ø x height | Ø 2.400 x 1.800 mm |
Workpiece weight | 5.000 kg |
Spindle speed | 6.000 min-1, 50 ~ 8.000 min-1, 50 ~ 15.000 min-1 (Option) |
Indexing | 1° (NC-table: 0,001°) |
Rapid feed rate | 42 m/min |
Feed rate | 1 ~ 30.000 mm/min |
