FH Series

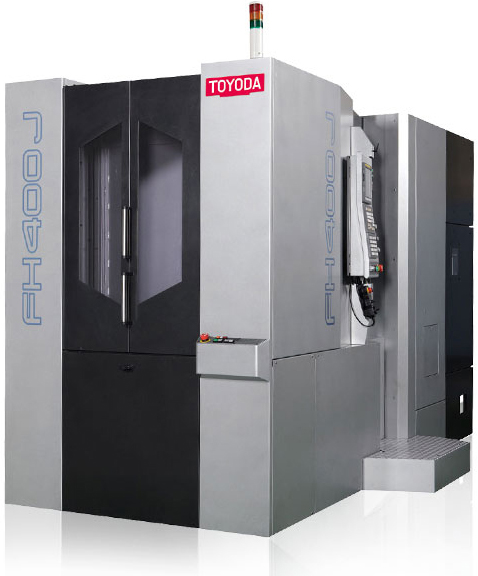

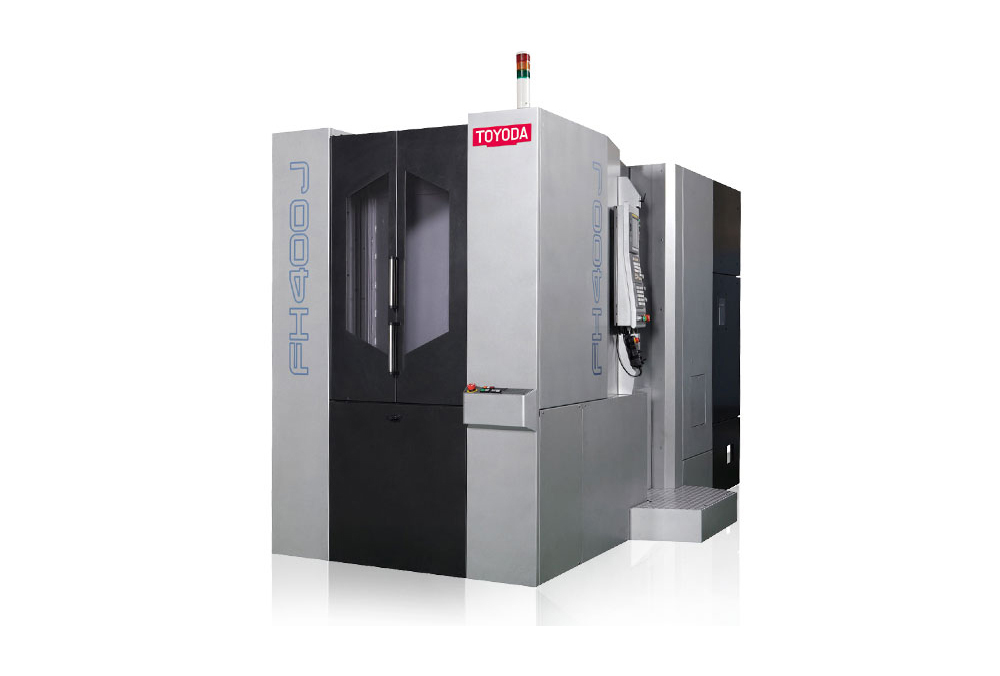

TOYODA FH400J
Toyoda FH400J is equipped with a high-speed pallet table.
Horizontal machining centre Toyoda FH400J requires minimum floor space but achieves maximum productivity.
This 400 mm² pallet size machine tool model, smaller than FH500J, is suitable to start up and to expand partly- or fully-automated production.
Attribute | Value |
|---|---|
Pallet size | 400 x 400 mm |
Traverse paths X/Y/Z | 600 x 560 x 630 mm |
Workpiece Ø x height | Ø 630 x 900 mm |
Workpiece weight | 400 kg |
Spindle speed | 50 ~ 15.000 min-1 |
Indexing | 0,001° |
Rapid feed rate | 60 m/min |
Feed rate | 1 ~ 30.000 mm/min |
