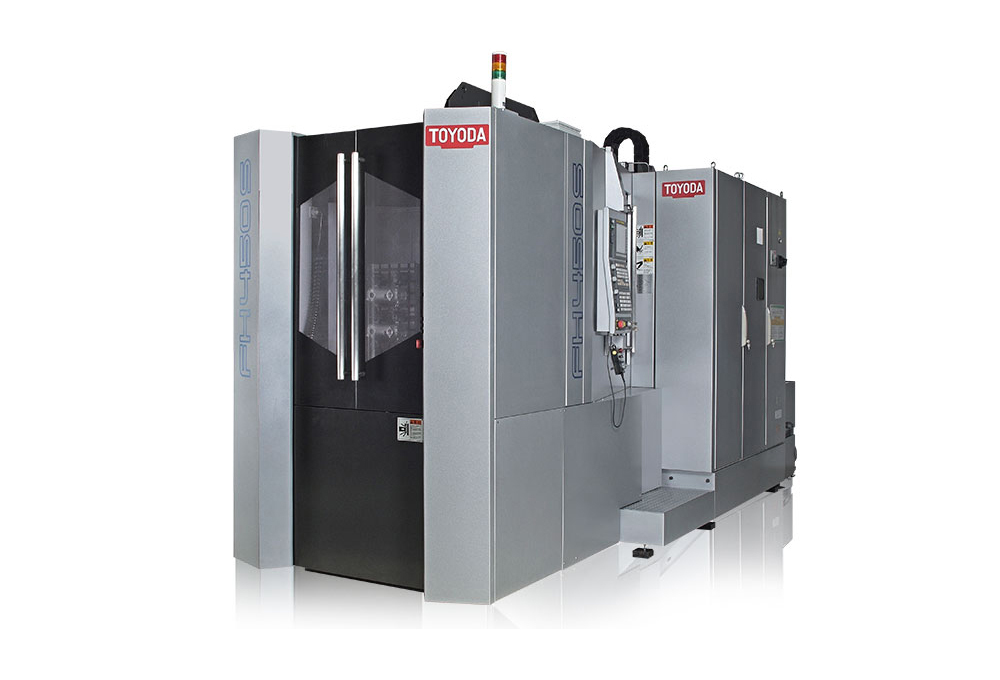

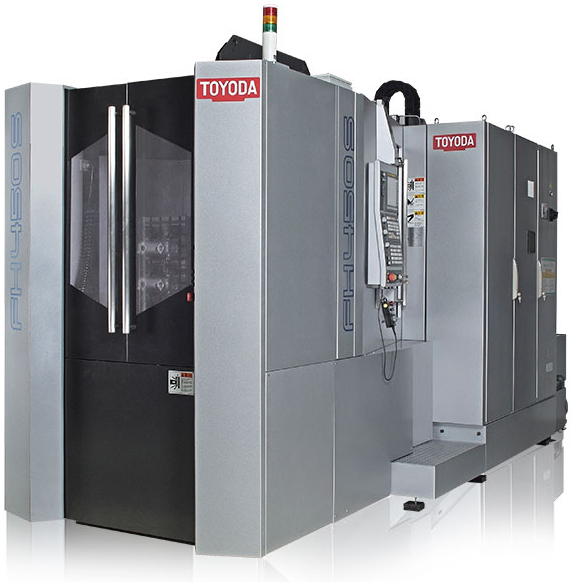

Toyoda FH450S
Toyoda FH450S is equipped with 450 x 450 mm pallets.
The 450 mm pallet of the machine tool Toyoda FH450S is characterized by high dynamics, maximum rigidity and productivity.
This horizontal machining centre, smaller than FH550S, combines the smallest possible foot prints and the largest possible work area.
Attribute | Value |
|---|---|
Pallet size | 450 x 450 mm |
Traverse paths X/Y/Z | 600 x 600 x 600 mm |
Workpiece Ø x height | Ø 630 x 750 mm |
Workpiece weight | 400 kg |
Spindle speed | 15.000 min-1, 50 ~ 20.000 min-1 (Option) |
Indexing | NC-table: 0,001° |
Rapid feed rate | 60 m/min |
Feed rate | 1 ~ 30.000 mm/min |
