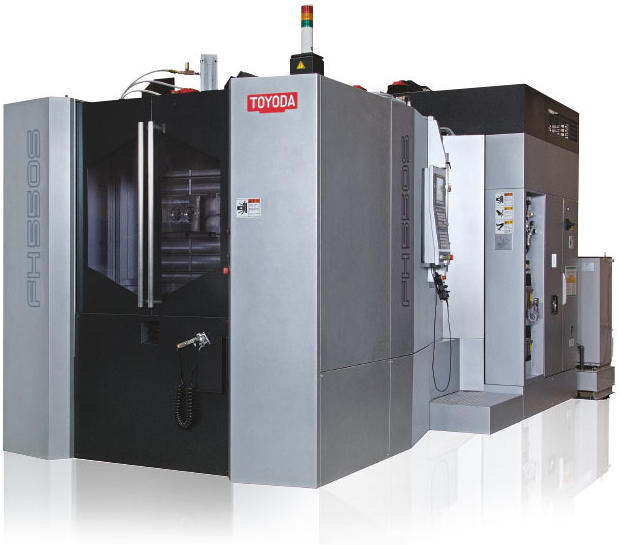

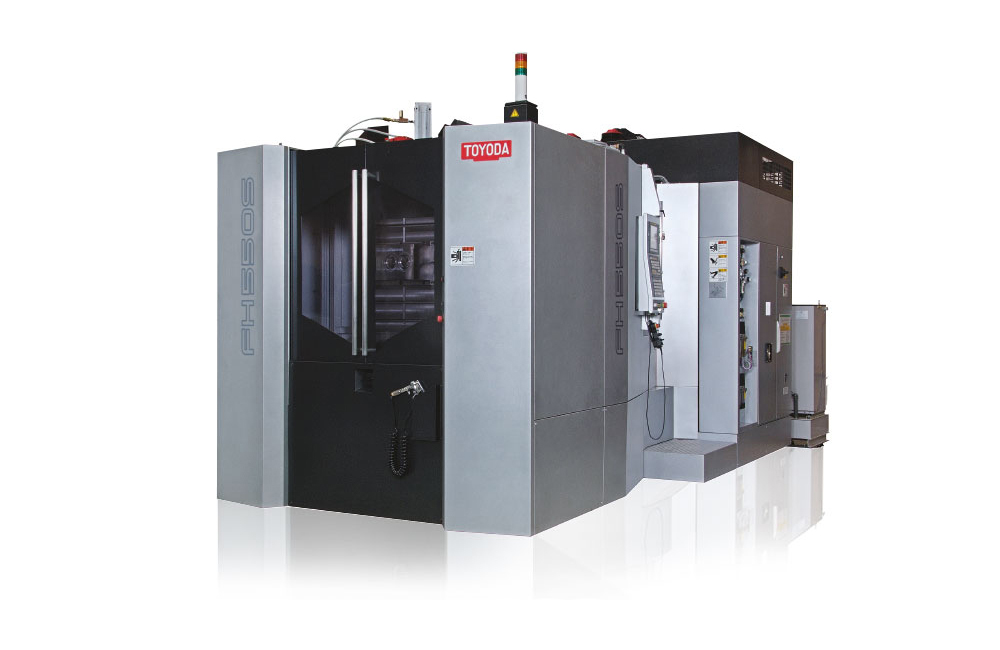

Toyoda FH550S
Roller guided Toyoda FH550S is equipped with 550 x 550 mm pallets.
The pallet of Horizontal machining centre Toyoda FH550S is characterized by high dynamics, maximum rigidity and productivity.
Like FH450S, this Toyoda machine tool model features thermally stablished dual ball screws in Z-axis.
Attribute | Value |
|---|---|
Pallet size | 550 x 550 mm |
Traverse paths X/Y/Z | 750 x 800 x 850 mm |
Workpiece Ø x height | Ø 850 x 1.000 mm |
Workpiece weight | 800 kg |
Spindle speed | 15.000 min-1, 50 ~ 20.000 min-1 (Option) |
Indexing | 1° (NC-table: 0,001°) |
Rapid feed rate | 60 m/min |
Feed rate | 1 ~ 30.000 mm/min |
