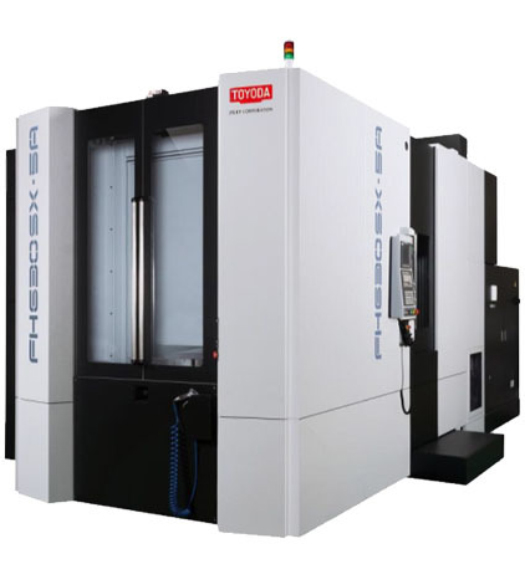

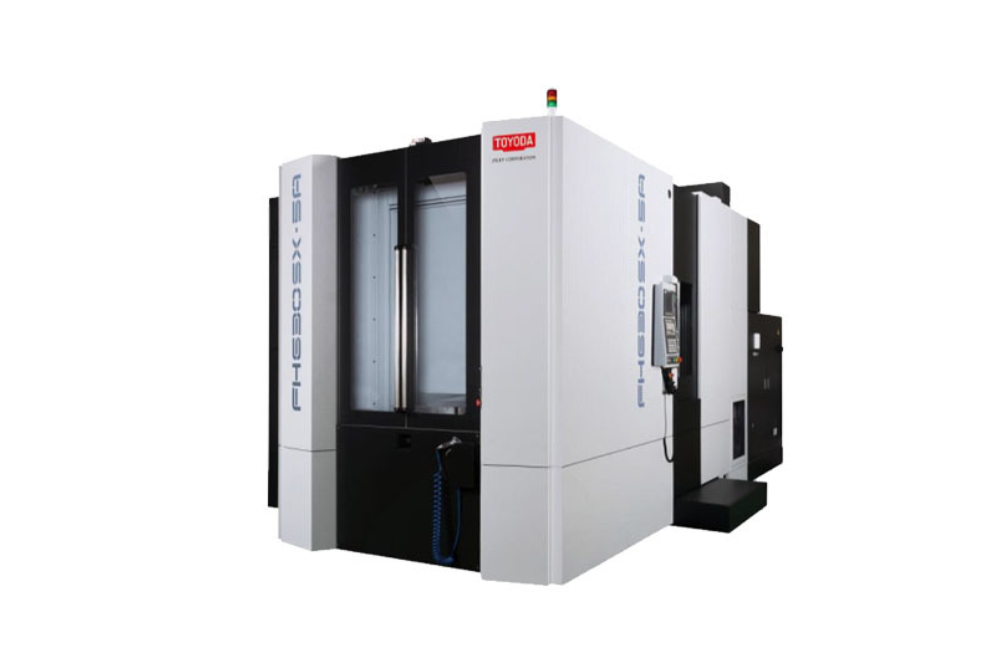

Toyoda FH630SX-i 5-AXIS
Developed Toyoda FH630SX-i 5-Axis machine tool, best-in-class 5-axis machine for a 630 mm platform, designed for complex part machining.
Toyoda horizontal machining center features an 8,000 RPM high-torque spindle, with the option of a 15,000 RPM high-power, multi-use spindle, and a replaceable taper design for high maintainability.
The tilting spindle comes with a robust C-axis drive train and an enlarged C-axis swivel range of 230 degrees for wider components.
Attribute | Value |
|---|---|
Pallet size | 630 x 630 mm |
Traverse paths X/Y/Z | 800 x 850 x 1050 mm |
Workpiece Ø x height | φ 1.170 × 1.600 mm |
Workpiece weight | 50.700 lb (23.000 kg) |
Spindle speed | 50～15.000 min |
Indexing | NC-table: 0,001° |
Rapid feed rate | 60 m/min |
Feed rate | 1 ~ 30.000 mm/min |
